Labino Astra Crime Kit

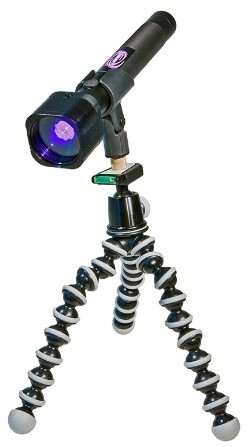

• The Astra Torch is a cordless battery operated torch light based on the LED technology.

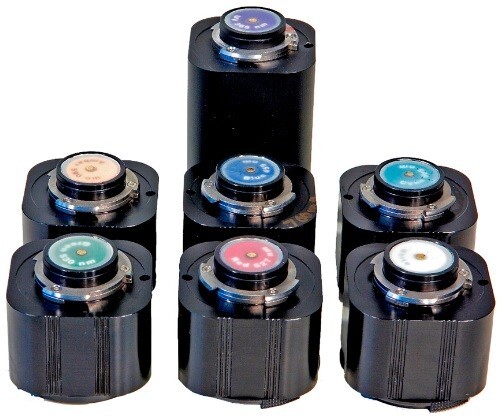

• The Astra Torch offers six (6) different coloured heads and 1 UV head and you are free to combine your own unique ALS – all kits includes a UV light head and then you add as many coloured heads as you like.
• The UV Head is available in two different light beams; 1° giving approx. 12000 µW/cm2
(recommended if you need a very strong lamp) and 5° giving approx. 3000
µW/cm2 (if you prefer a larger light beam).
• The light emitting diodes emit a beam of light that is “evenly” distributed powerful.
• The torch can be operated with 3 normal alkaline batteries, if you run out of battery.
• Its compact size makes it easy to work with and with an instant-start function you get full power
immediately.
• Manufactured by Labino in Sweden.

TECHNICAL SPECIFICATION

LED:

• UV: 365 nm, beam 1°≈12 000µW/cm2, beam 5°≈3 000µW/cm2;
• Blue: 455 nm, 33 lm or 900 mW;
• Cyan: 505 nm, 106 lm;
• Green: 530 nm, 115 lm;
• Amber: 590 nm, 116 lm;
• Red: 627 nm, 52 lm;
• White: 4 100°K, 160 lm.

Voltage:

• Charger: 100-240 VAC;
• Electronics UV: 500 Am;
• Electronics Visible light: 1000 Am.

Operated via included Li-ion Battery

• 7.4 V Li-ion accumulator;
• Running time: approx 3.5 hours +/- 5%;
• Charging time: approx. 6 hrs;
• Charge from mains via wall socket charger;
• Cannot be operated while charging.

Operated via Alkaline batteries

• Can be operated by 3 Alkaline C batteries 1.5 V;
• Running time: approx 2.5 hrs +/- 5%;
• Batteries are not included.

Weight, dimensions and material:

• Total weight incl. battery: 0.7 kg;
• Weight excl. battery: 0.57 kg;
• Total length of the Torch: 31.5 cm;
• Dimension of the light housing: 5.5x5.5 cm;
• Material in housing: anodized aluminium.

Included in the Kit:

• 1 lamp body;
• 1 UV head;
• 1 Li-ion battery;
• 1 charger;
• 4 goggles (UV-block, red, orange & yellow);
• 1 Carrying case with custom designed interior (IP67).
